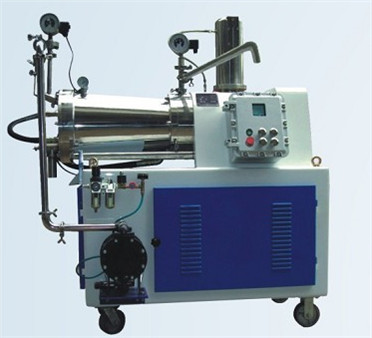

KFM25L-120L大容量卧式砂磨机
应用/Applications
◆平版印刷油墨/Lithographic inks ◆UV印刷油墨/UV printing inks
◆汽车漆/Automotive paint ◆色浆/Color paste
◆网版印刷油墨/Screen Printing Inks ◆图片印刷油墨/Photo printing ink
◆电子油墨/Electronic ink
特点/Features
◆机身随处可移，几乎零震动，噪音极低 ◆研磨腔锥型构造，产品在高黏度下流动畅通无阻
◆采用螺旋输送器，加快研磨介质、朝离心及轴向方向运动 ◆高精度间隙隔离具有自动清洗功能
◆研磨腔锥型构造，研磨腔盖可开启，便于清洗换色 ◆隔离间隙冷却、前端冷却、定子冷却、机封冷却
◆研磨腔体和分散叶均采用耐磨材料，生产出高质不变色的产品
◆工作压力和温度，冷却水压和温度实行自动监控，可实现全自动作业
◆Body can be moved anywhere, almost zero vibration, low noise
◆Conical grinding chamber constructed to ensure high viscosity products at the free flow
◆Spiral conveyor speeds grinding media toward centrifugal and axial direction
◆Precision gap separation with automatic cleaning function
◆Conical grinding chamber and grinding chamber cover can be opened for easy cleaning and color changing
◆Isolation gap cooling, front-end cooling, stator cooling and mechanical seal cooling
◆Grinding chamber and dispersing leaves are made of wear-resistant material to produce high-quality products that do
not change color
◆Working pressure and temperature, cooling water pressure and temperature can be monitored automatically enables fully
automatic operation
标准配置/Standard Configuration
◆双重机械密封/Double mechanical seal
◆精密进口轴承/Imported precision bearings
◆隔离间隙冷却、前端冷却、定子冷却/Isolation gap cooling, front-end cooling, stator cooling
◆自动防呆压力装置（工作压力、水压）
Automatic Foolproof pressure device (working pressure, water pressure)
◆自动防呆温度装置（工作温度、水温）
Automatic Foolproof Temperature Devices (working temperature, water temperature)
◆防爆装置/Explosion-proof device
◆送料泵浦（齿轮泵/隔膜泵）/Feeding pump (gear pump / diaphragm pump)
技术数据/Technical Data
型号/Model KFM-25LA KFM-60LA
容量/Capacity （L） 25 60
主机功率/Motor Power（KW） 22 37
冷却水/Cooling Water（m3/h） 3000 3000
空气压力/Air Pressure Bar 4-8 4-8
产品流速/Product Flow Rate（L/h） 200-500 300-1200
研磨介质/Grinding Media （Φmm） 0.6-2.0 0.6-2.0
净重/Weight（kg） 1000 1400
